Vision inspection

Vision inspection

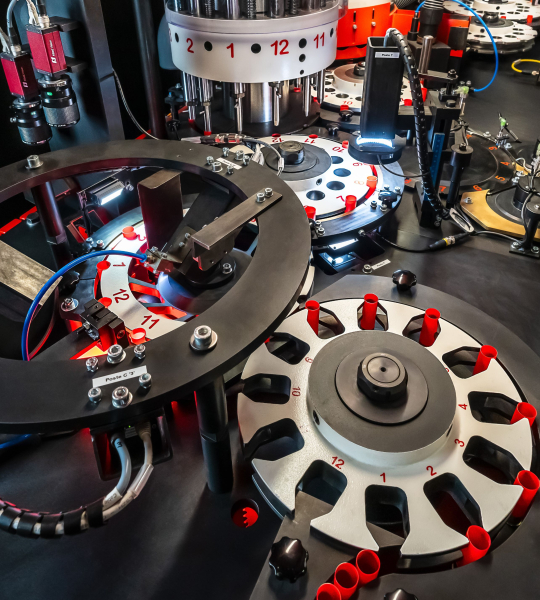

INDUSYS, in synergy with ROVI-TECH (world specialist in vision inspection), has developed a high speed inspection machine that detect visual and dimensional defects on shotshell cases and cartridges.

ROVI-TECH has its own vision technology software (with its ILB-25 - Image Learning Box) which operates on the basis of learning (NEURAL process).

The software is able to assimilate a concept and make a decision (accept/reject) after learning about a situation it has never observed and learned before. This means that this functions as an autonomic intelligent system.

INDUSYS, with its experience in mechanical systems, can accommodate ROVI-TECH software, cameras and lightings on any type of production machines.

Capabilities

Dimensional Measurement (Resolution: 30 µm/pixel):

  • Tube length,
  • Diameter under the rim,
  • Rim thickness,
  • Rim diameter.

Visual defects:

  • Head case: scratch / stain / damaged mouth / mark conformity,
  • Tube case: colour / colour variation / tube overlap / dent / damaged / oval tube mouth
  • Primer: missing / inverted / poorly inserted / presence of waterproofing.
